By Big Toy
Squash Machines
Owners tell us the same thing: once it is on court, practice becomes easier, happier, and more enjoyable.
Main product features.
Designed for repeatable squash training, with automatic feeding, app and remote control, 80-ball capacity, preheat function, long-lasting battery, and easy court-to-court mobility.

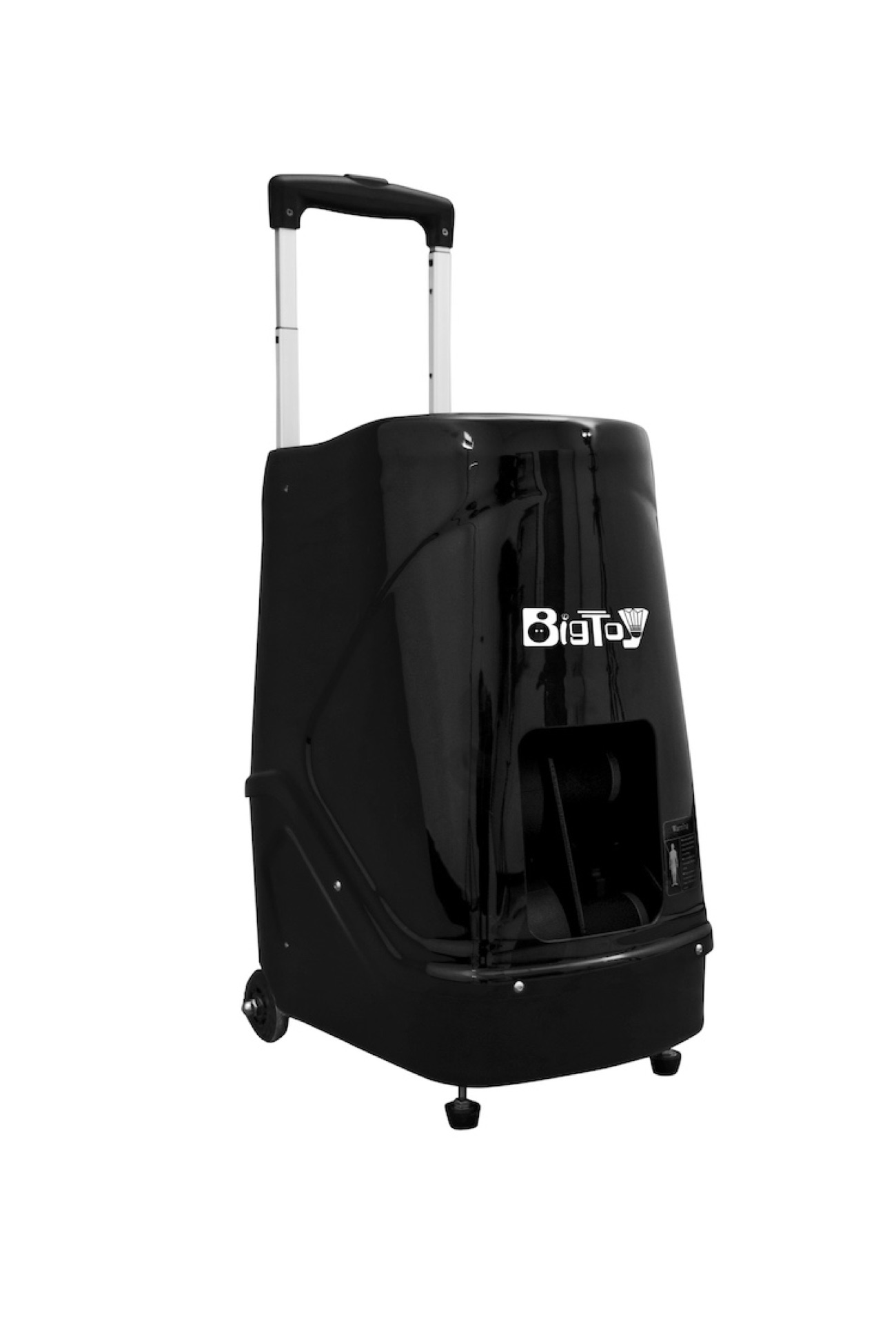

Read the squash ball machine guide- Feeding
- Speed, frequency, height, and direction control
- Drills
- Forehand, backhand, volley, and two-point training
- Control
- Phone APP and Remote Control options

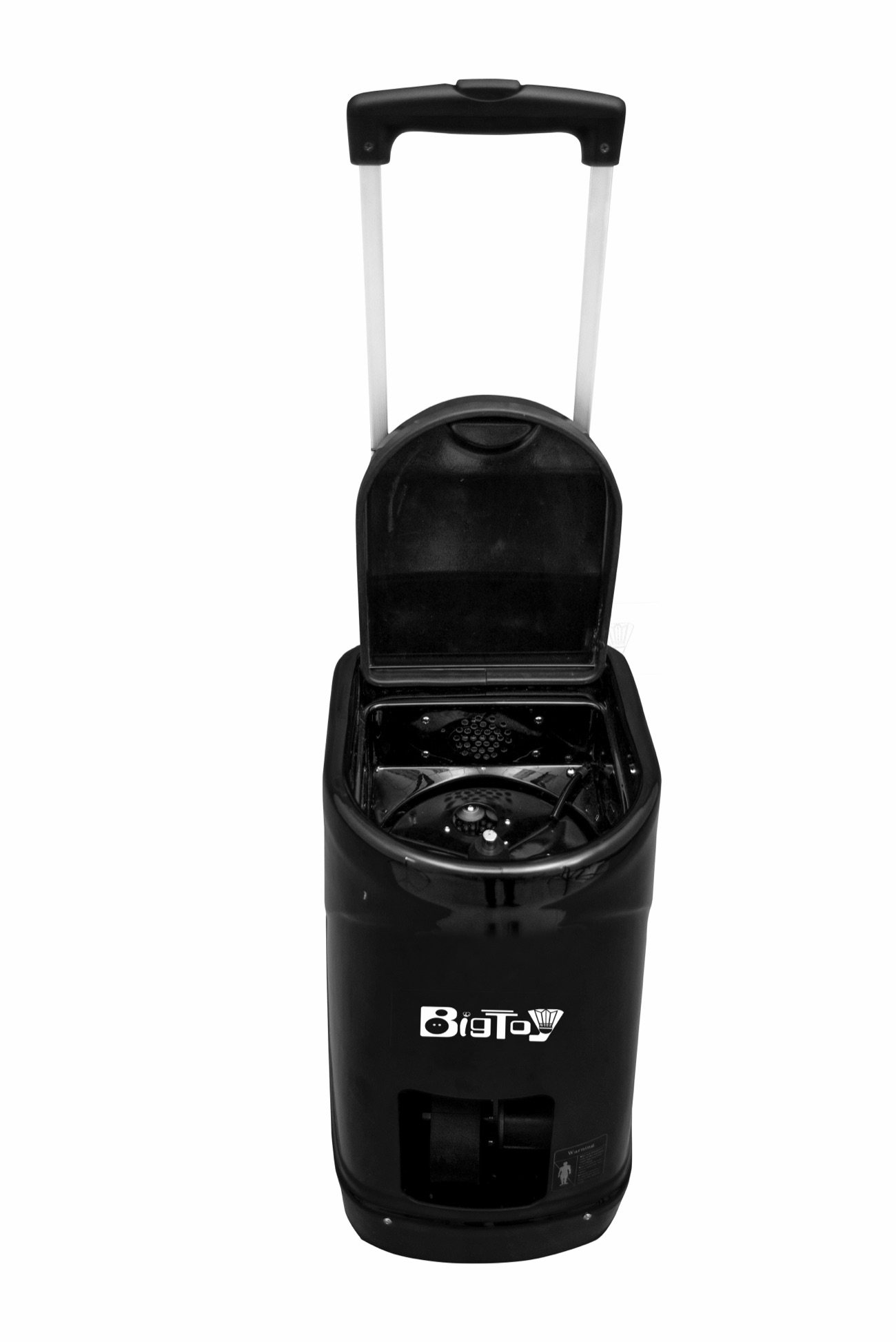

- Capacity
- 80 balls for longer training sets
- Preheat
- Warm-up function before play
- Battery
- Long-lasting battery for flexible court use

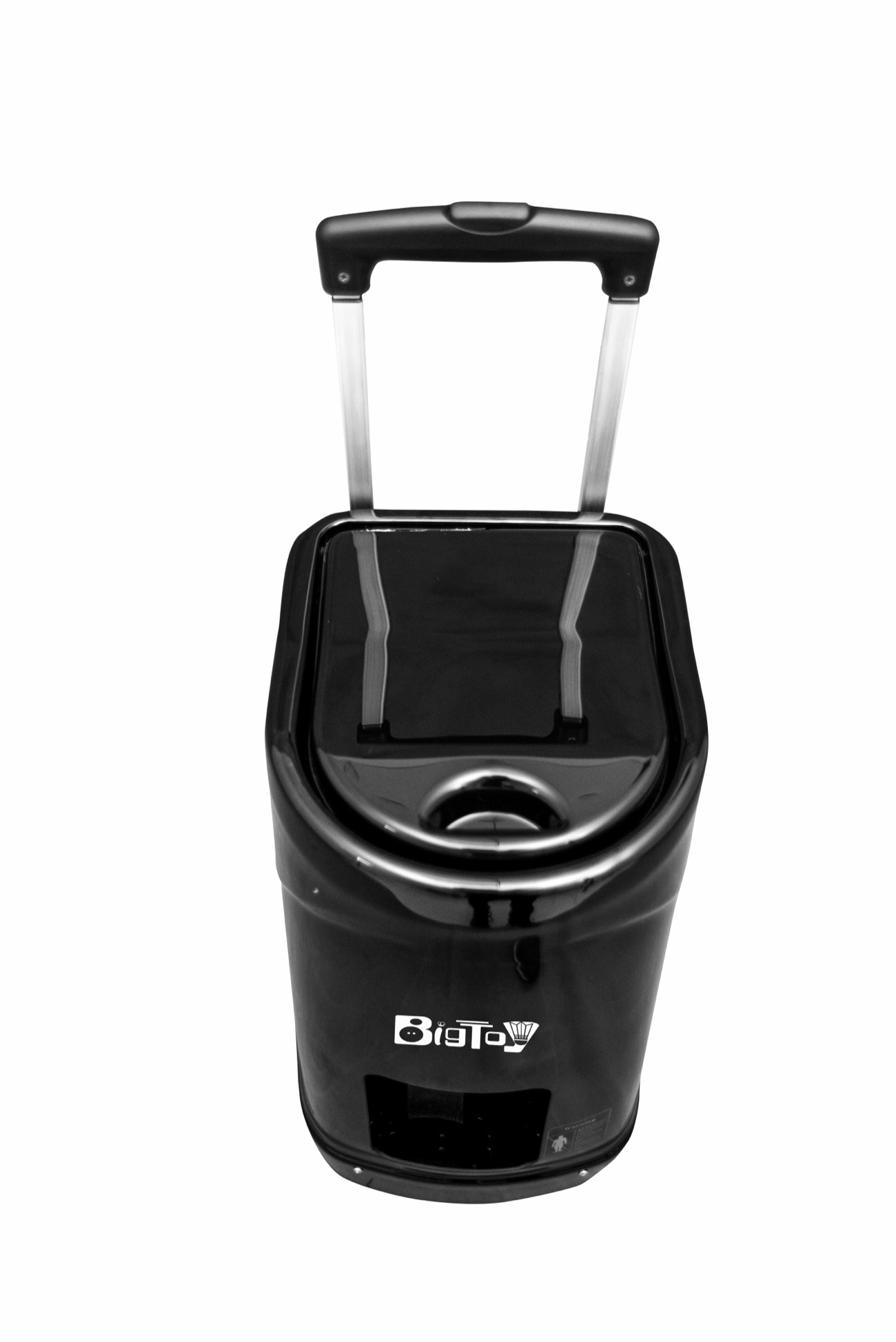

- Portability
- Wheeled body and pull handle for moving between courts

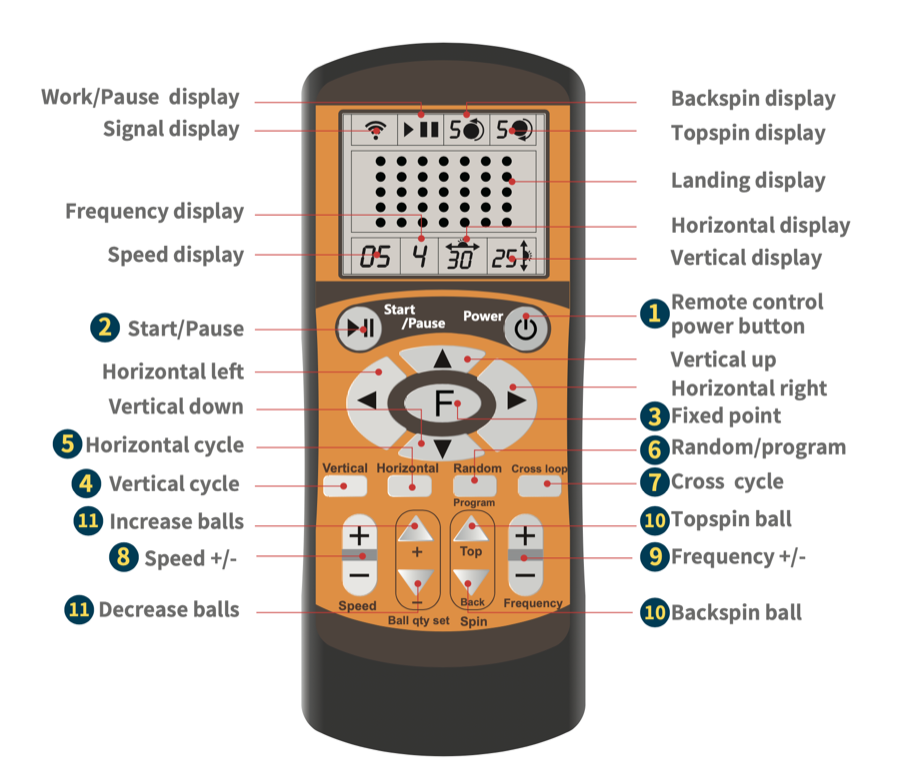

Smart control from the court.
Adjust feeding behavior, speed, timing, spin, and training patterns directly from the phone app or remote control.
- Control
- Phone app and remote control
- Preset Drills
- Fixed, horizontal, vertical, and random modes
- Spin
- Backspin and topspin settings
- Custom Program
- 35-point programmable training patterns
Watch the machine in real drills.
The full video library is hosted on YouTube for fast playback and easy sharing with coaches, committees, and buyers.
Video categories
Open YouTube playlist- Forehand and backhand drills
- Volley and two-point movement
- Ball picker demonstrations
- App interface and setup guidance
Compare with other squash machines Open the detailed specification table
The right machine depends on how your club trains. If portability, battery operation, app control, and ball capacity matter, the S336A is a strong alternative to a larger mains-powered club machine.
| Feature | BigToy S336A | Squash Cannon |
|---|---|---|
| Best fit | Clubs, coaches, academies, and players who need a portable training machine | Traditional club installations and coaching environments |
| Ball capacity | 80 balls | About 60 balls |
| Power | AC power or built-in rechargeable battery | AC mains powered |
| Battery operation | Up to around 3-4 hours | Not typically listed as built-in battery powered |
| Control | Mobile app and remote control | Touch panel, optional remote on some packages |
| Remote-adjustable parameters | Speed, width, height, and feed frequency can be adjusted from the remote. App control is also available. | Touch panel adjustment, with optional remote controls for start, stop, and trajectory on some packages |
| Angle adjustment | Vertical and horizontal angle adjustment by wireless remote control or mobile app | Elevation and trajectory can be adjusted on the touch panel sliders. Horizontal aiming is mainly by machine positioning. |
| Ball heating | Built-in squash ball heater | Temperature-controlled ball heating |
| Ball warm-up time | Balls are heated after approx. 5-10 minutes | Temperature-controlled heating. Warm-up time depends on setup and conditions. |
| Speed range | Approx. 20-140 km/h | Approx. 10 to 100+ mph, depending on setup |
| Feed interval | Approx. 1.8-8.9 seconds per ball | Approx. 0.75-15 seconds per ball |
| Training modes | Fixed point, vertical, horizontal, random, cross-court, and custom drills | Manual, lob, drop, decay, random, and interval modes |
| Custom programmed positions | Up to 35 feeding positions can be programmed | Programmable drills are available, but the public user manual does not list a comparable 35-position custom program. |
| Spin | Adjustable topspin and backspin | Speed, angle, and spin adjustment depending on model and source |
| Vertical angle scales | 12 vertical levels | Adjustable elevation, but the public user manual does not publish a total number of vertical levels. |
| Horizontal angle scales | 30 horizontal levels | No published numbered horizontal angle scale found in the public user manual. |
| Laser targeting | Not included | Optional laser targeting available |
| Size | Approx. 42 x 35.5 x 62 cm / 16.5 x 14.0 x 24.4 in | Approx. 56 x 48 x 81 cm / 22.0 x 18.9 x 31.9 in |
| Weight | Approx. 20-21 kg | Approx. 21.6 kg / 55 lb |
| Warranty | 2-year BigToy Technology warranty | Typically 1-year parts and labour, depending on supplier |
Specifications are based on published manufacturer and dealer information, SIBOASI product data, the S336A squash machine manual, the public Squash Cannon user manual, and BigToy Technology sales and support information. Packages can vary by supplier and region.
Manuals, shipping, and after-sales support.
Share your country, club type, quantity, and preferred delivery timing. We can reply with model details, freight options, setup videos, and current availability.
BigToy S336A includes a 2-year BigToy Technology warranty, instant support for setup and operation questions, and a 2-week no-reason return policy.
FAQ.
Quick answers for clubs, coaches, academies, and players comparing squash ball machines.
How many balls does BigToy S336A hold?
BigToy S336A holds up to 80 squash balls, which helps coaches and players run longer repetition drills with fewer stops.
Can BigToy S336A run on battery power?
Yes. BigToy S336A can run on AC power or its built-in rechargeable battery, making it practical for clubs, coaches, and multi-court training.
Does it support phone app and remote control?
Yes. You can use phone app and remote control options to adjust speed, timing, feeding behavior, spin, and repeatable training patterns.
Does it preheat squash balls?
Yes. BigToy S336A includes a preheat function to help warm squash balls before training.
What training modes are included?
Training options include fixed, horizontal, vertical, random, cross-court, and custom programmed drills, including up to 35 feeding positions.
What warranty and return policy is included?
BigToy S336A includes a 2-year BigToy Technology warranty, instant support for setup and operation questions, and a 2-week no-reason return policy.
Can you ship to my country?
Share your country, city, quantity, and use case. We can reply with delivery options, lead time, and quote details for your location.
Request a delivered quote.
Send your country, city, product interest, quantity, and whether the machine is for a club, coach, school, or home court.
Quotes can include freight options, lead time, warranty details, manuals, and product videos.
